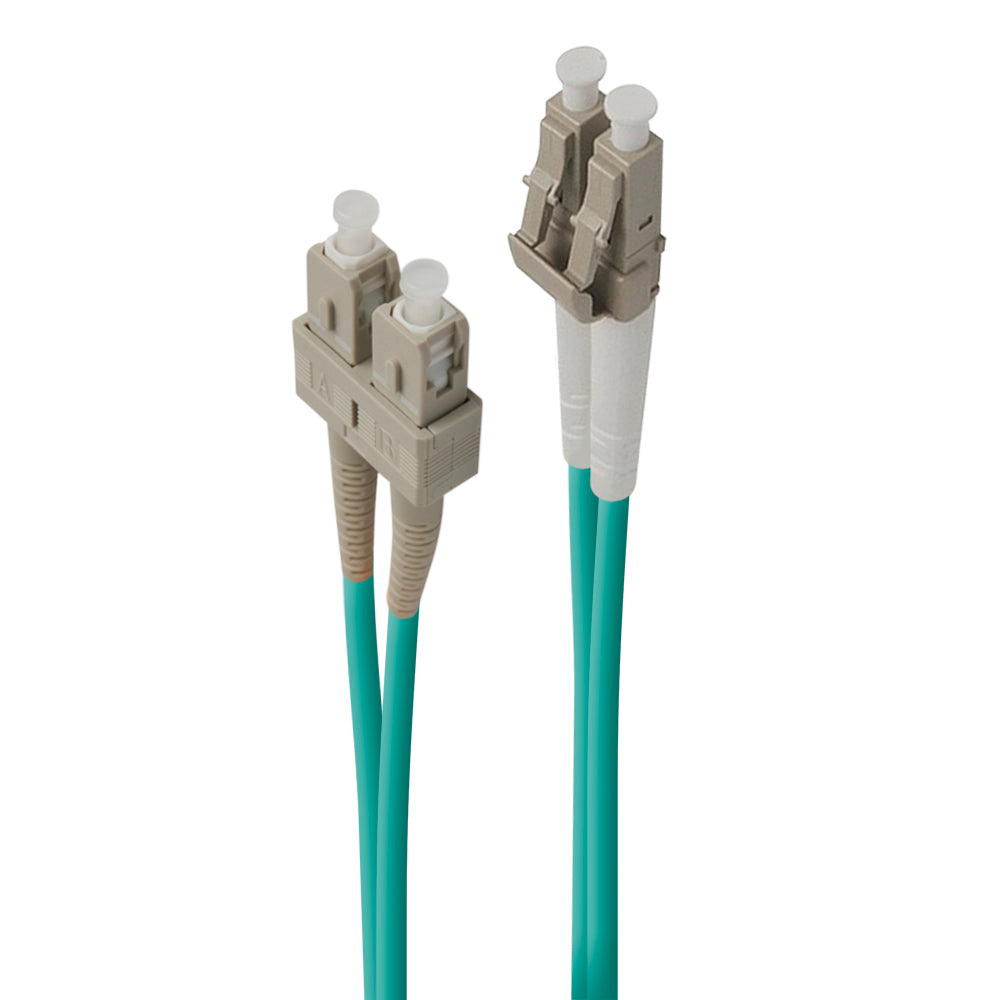

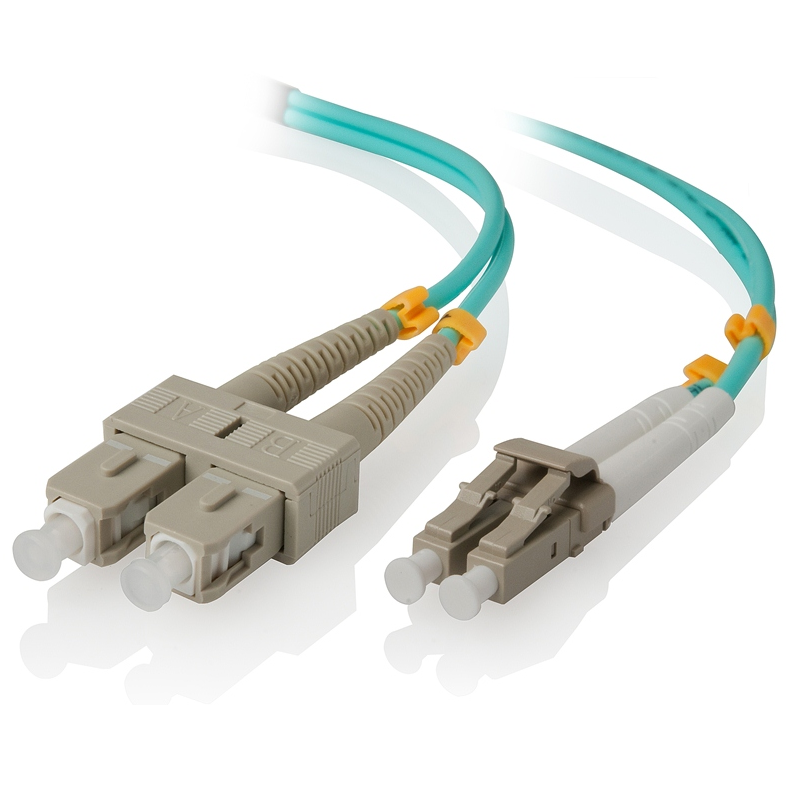

LC-SC 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4
LC-SC 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4

LC-SC 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4

SKU: LCSC-01-OM4
Length: 1m
Sale price$11.24 Regular price$14.99
Sold out
media

PRODUCT FEATURE

The Multi Mode OM4 cables are designed to support high transfer speed, the cables are capable of supporting up to 1 gigabit applications at the same time being backward compatible with OM3 and OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.

* Multi Mode OM4 fibre optic cable
* Available in various lengths starting from 1m to 20m
* Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
* 100% optically tested and provided with test reports

Specifications
  • SKU: LCSC-XX-OM4
  • Connector: LC, SC
  • Wavelengths: 50 µm (OM4)/125 µm
  • Attenuation: At 850 nm: <3.0 dB per km | At 1300 nm: <1.2 dB per km
  • Insertion loss : <0.5 dB per 300 m @ 850 nm or 1300 nm
  • Fiber: Glass
  • Number of fibers: 2
  • Jacket: LSZH (Low Smoke Zero Halogen)
  • Cable outer diameter: 3mm +/-0.2mm
  • Safety: ETL/c-ETL
