Fusion Pro NEXUS USB-C Universal Video Dock
on the Go

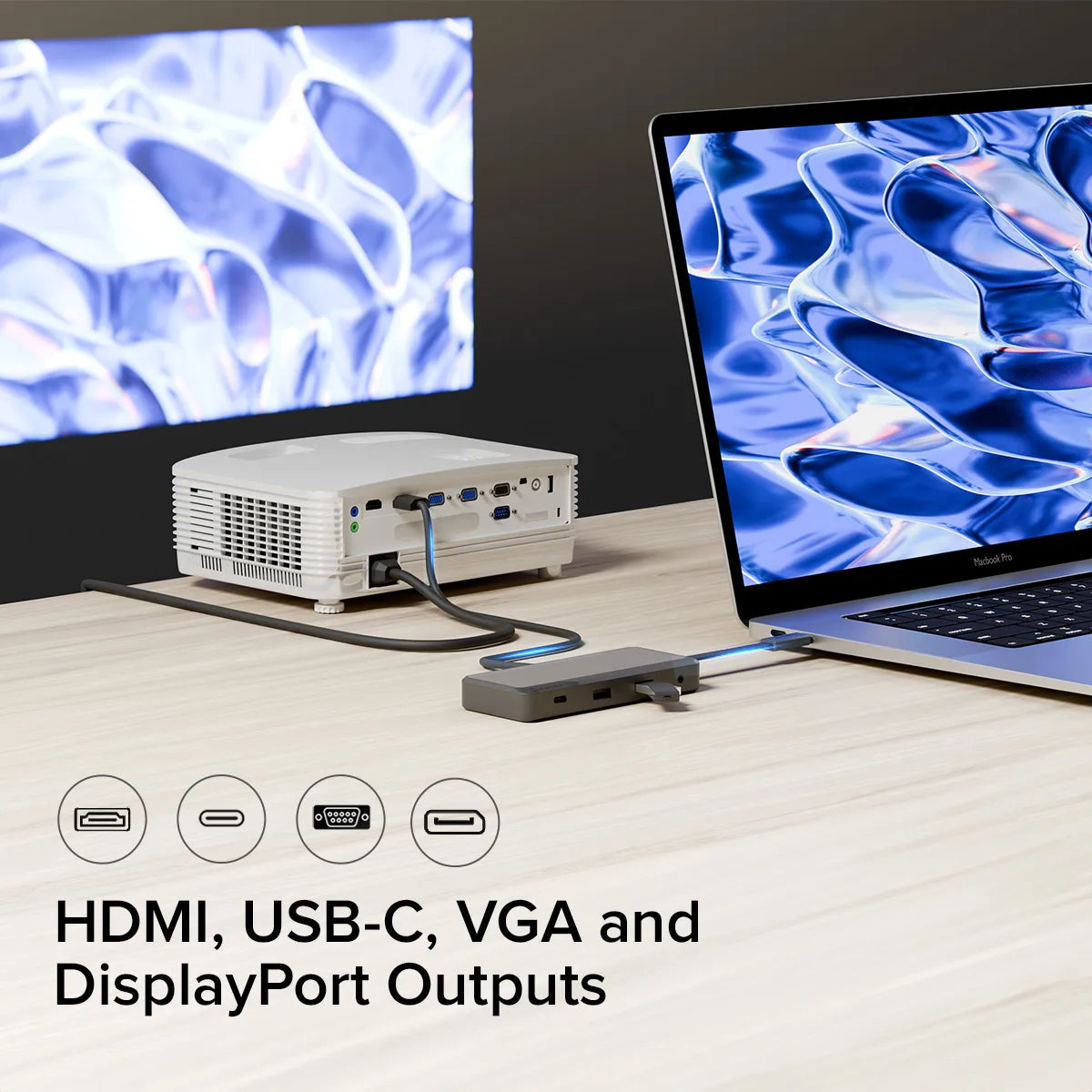

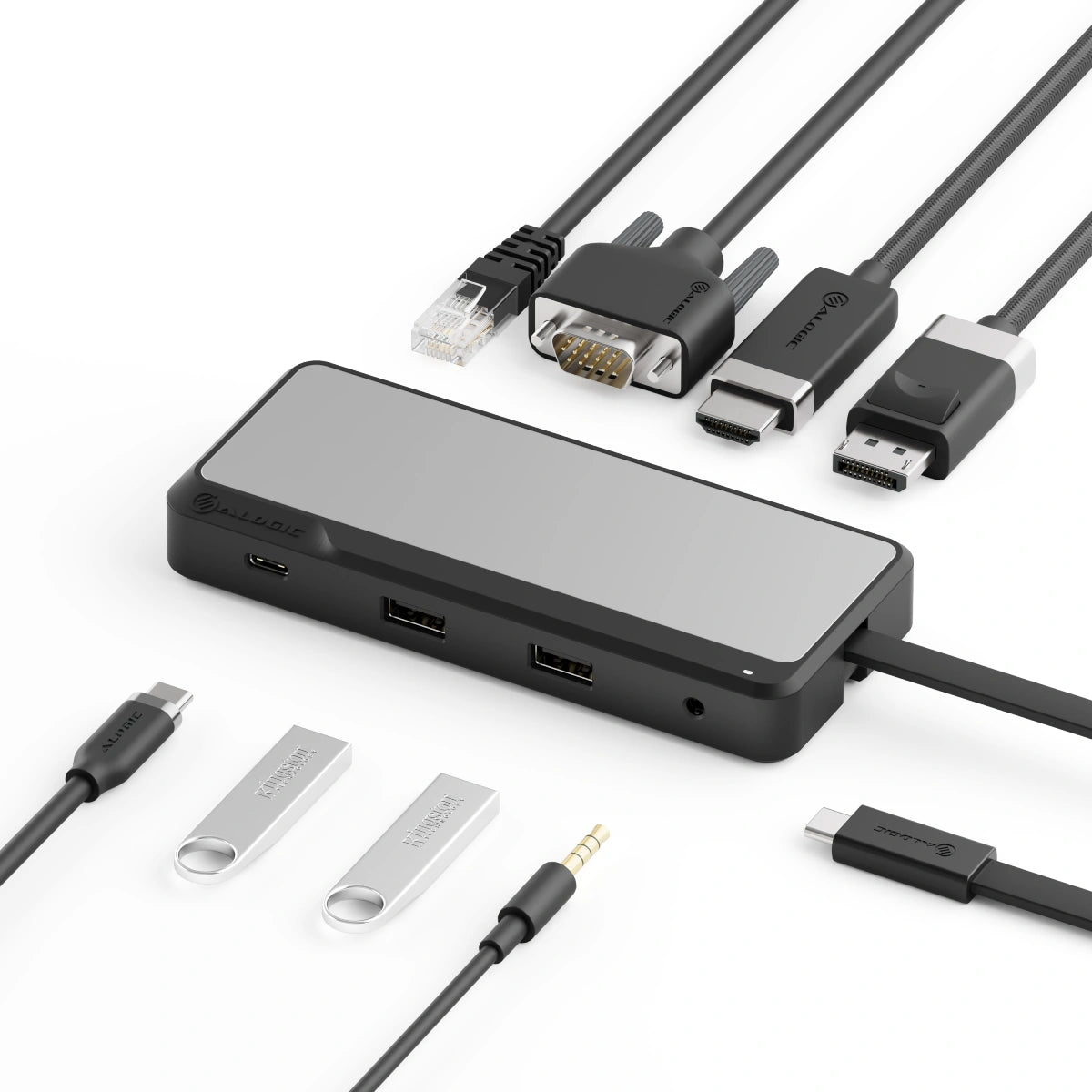

The ALOGIC NEXUS Universal Video Dock has been designed to easily connect your computer to any display and audio system you’re likely to encounter. Featuring HDMI, DisplayPort, VGA and USB-C video outputs, the NEXUS dock is the last word in portable video connectivity.
Ensure your presentation looks its best.
The NEXUS dock supports up to 4K video output from HDMI, DisplayPort and USB-C video outputs to
provide the most detailed and realistic images possible*.

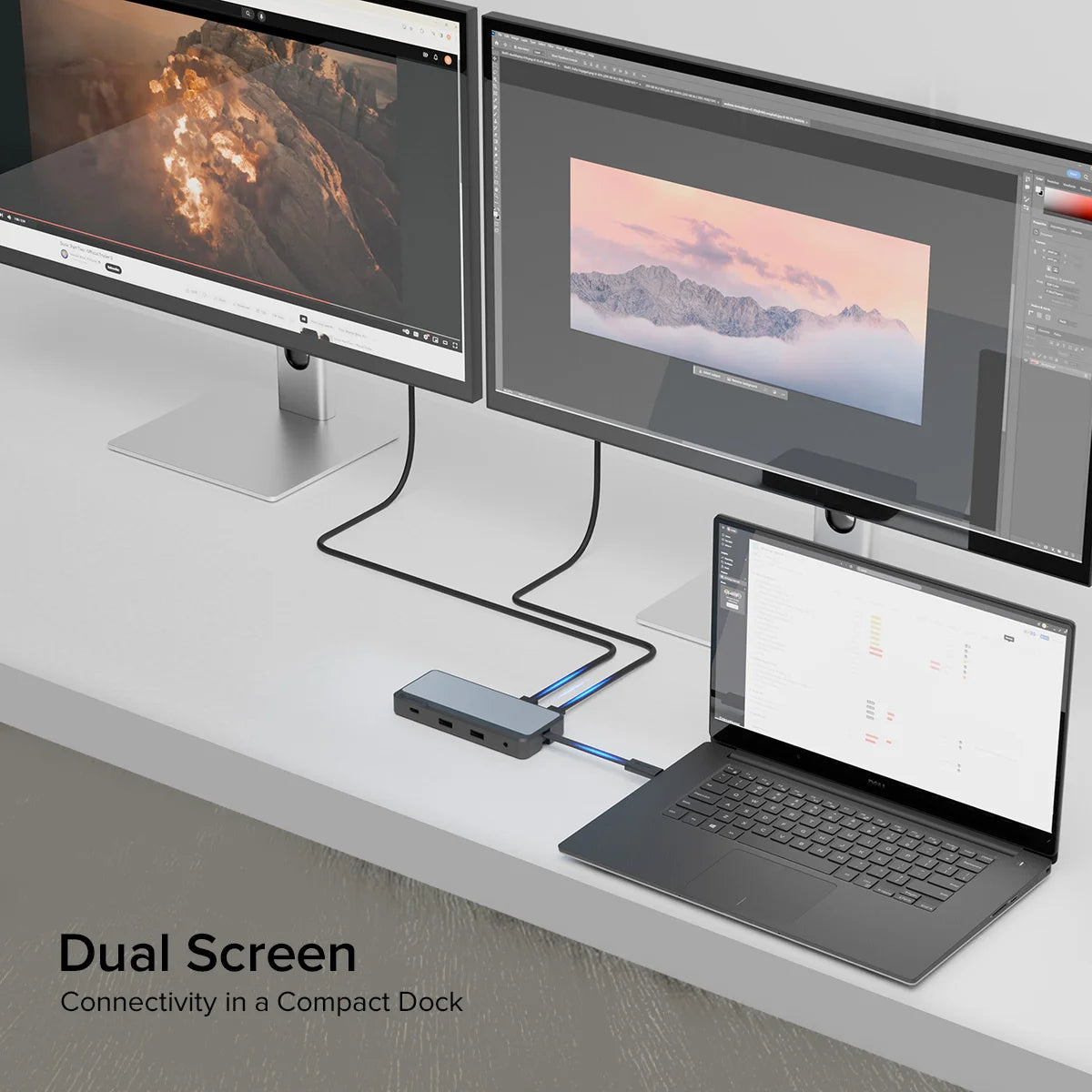

*Number of displays and resolutions supported are dependent on the type and capability of the computer used. Apple Mac computers support a single display with this device. Windows machines are able to connect multiple displays.
This multi-purpose hub is designed for mobile users – road warriors, educators, students and professionals who work between the office and home.
A robust and elegant mix of Aluminium and impact resistant ABS ensure the hub is strong, and the folding cable stows within the housing so it can live in a laptop bag while taking up minimum space and without fear of being damaged.
General
Note: When connected to a USB-A port, only HDMI 2 and 3 can be used (2x 1920*1080@60Hz displays).
Maximum resolutions for the different video outputs vary depending on the capabilities of the connected computer. Guidance on achievable resolutions can be found in the resolution support table in the specifications for the product.

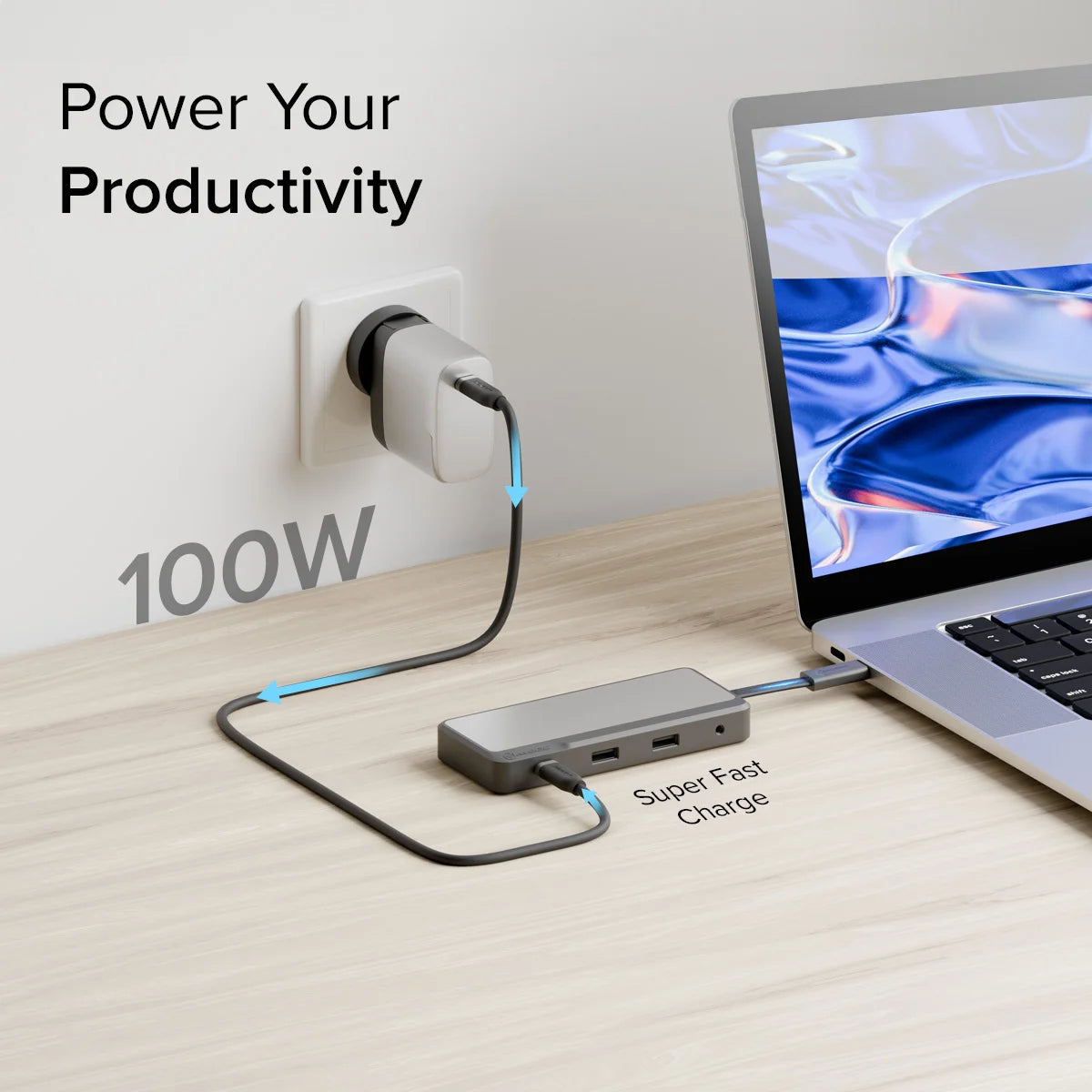

The device supports USB PD 2.0 and 3.0 power adapters up to 100W. Note that the device can reserve up to 15W from power adapters to power itself and peripheral devices connected to the ports on the hub so it is best to use a USB PD power adapter that is at least 15W larger than the power adapter that was supplied with the computer.
The maximum Wattage that this hub can provide to charge a computer is 85W (100W power adapter minus 15W reserved by the hub). This is sufficient for most laptops, but a few larger high performance laptops may slow charge or not be able to charge through this device. If the computer shows a message indicating that it is not receiving enough power from the device, increase the size (Wattage) of the connected power adapter or connect the power adapter directly to the computer.
Devices
| Host Type | Max Resolution/Refresh Rate | |
| Without DSC* | With DSC* | |
| USB-C 3.x DP1.2 alt mode hosts | 4K 30Hz |
|
| USB-C 3.x DP1.4 alt mode hosts | 4K 60Hz | 8K 30Hz |
| TB3 DP1.2 alt mode hosts | 4K 30Hz |
|
| TB3 DP1.4 alt mode hosts | 4K 60Hz | 8K 30Hz |
| TB4 DP1.4 alt mode hosts | 8K 30Hz | 8K 60Hz |
| USB 4 hosts | 8K 30Hz | 8K 60Hz |
| Mac Intel hosts | 4K 30 - 60Hz |
|
| Mac first generation M1 hosts | 4K 60Hz |
|
| Mac M1 Pro/Max hosts | 4K 60Hz |
|
* DSC: Display Stream Compression
