DV3 12-in-1 USB-C Dual Display Mini Dock

SKU: DUCDDV3V2
Sale price$89.99 Regular price$119.99
Sold out

HOLIDAY SALE ✴️ | Discount Auto-Applied in CheckOut

12 Connections Over a Single Cable

Connect with your most productive self with the DV3 dual HD monitor portable docking station. With 12 ports, there’s no need to choose between your devices, as your phone, keyboard, mouse, SD card and the rest can connect simultaneously over DV3’s single USB-C/A cable.

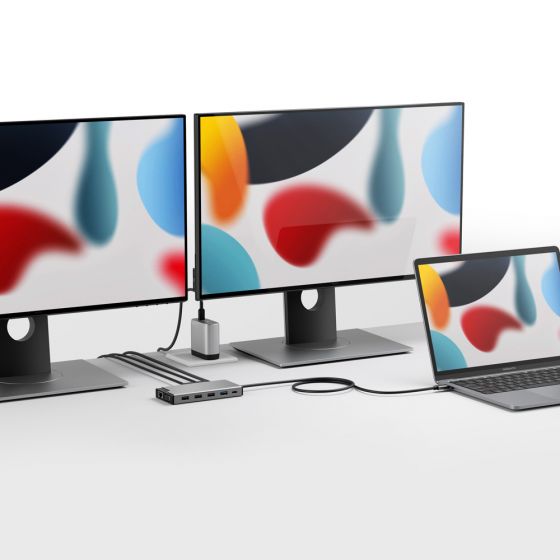

The addition of reliable, high-speed Gigabit Ethernet ensures you’ll never have an embarrassing disconnect during a meeting. While HDMI and VGA connections for two unique HD monitors give you plenty of screen space to work comfortably.

UP2QC10AWA-SGR

Works seamlessly with your laptop

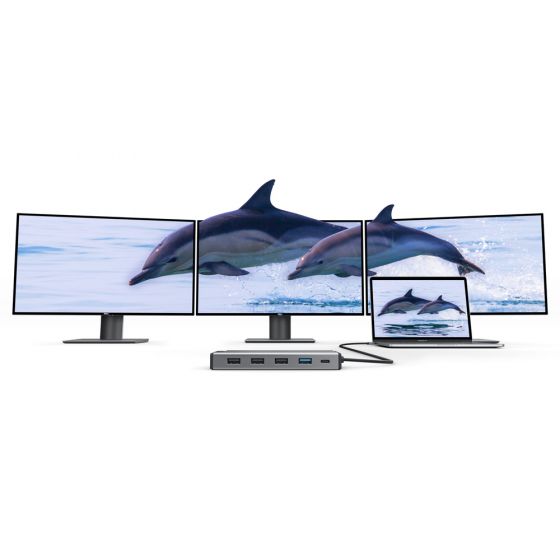

Consider your compatibility headaches cured. Our USB-C powered DV3 triple monitor docking station is compatible with all modern laptops. Plug in your Mac, Windows, or Chromebook device. Hot desk it at home or in the office. Our multi-port laptop hub has been designed for seamless connectivity with whatever system you’re running. When it’s time to retire your old laptop, it only takes one plug from our DV3 multi-port USB hub to seamlessly reconnect you to all your favourite devices and 3 monitor display. We call that an act of conservation. You could call it an awesome return on investment. The DV3’s DisplayLink technology boosts your connectivity, power and productivity at work, all with a single connection. It’s like magic.

100W Laptop Charging

When connected to a suitable USB-C Power Delivery (PD) charger, DV3 can deliver up to 100W passthrough charging to any USB-C connected computer, eliminating the need to plug a separate power cable into your laptop.

Frequently Asked Questions

General

Do I require a power adapter to use this dock?
This dock may be used without a power supply, receiving its power from the USB port on the host computer, but power available to connected peripherals will be limited to what the host computer can provide. If too many power hungry devices are plugged into the USB ports on the dock the dock may be unstable or shut down as a result of exceeding the power that the upstream USB port on the computer can provide.

It is recommended that a power adapter be connected to the dock for the best experience and reliability. Connecting a power adapter also allows the dock to charge the connected computer using USB Power Delivery Passthrough.

This dock features a USB-C Power Delivery (USB PD) power input, allowing it to be used with any USB PD power supply with an appropriate rating to power the dock and the connected laptop. ALOGIC recommend the DCG1X100 100W Rapid Power GaN charger as a preferred power adapter for use with this dock.

The dock secures 15W from the connected power adapter to power itself and any connected peripherals and passes the remaining power to the connected computer. As a result, the use of a USB PD power adapter that has an output at least 15W higher than the power adapter supplied with the computer is recommended to ensure that the computer charges at the highest speed possible when connected to this dock. The dock can provide up to 85W of power to the connected laptop when used with a 100W USB PD power adapter.
Does the DV3 require any additional software installation?
The DV3 is a DisplayLink enabled dock, we recommend installing the DisplayLink software which is free to download via: https://www.synaptics.com/products/displaylink-graphics/downloads
What laptops are compatible with the DV3?
The DV3 is compatible with Windows, MacBooks (even M1 MacBooks) and Chromebooks.

Compatibility

My laptop has Thunderbolt 3 or 4 ports - can I use the DV3 dock with my laptop? - DUCDDV3
Thunderbolt 3 and 4 ports uses the same connector as USB-C ports. You can use the DV3 dock on Thunderbolt 3 or 4 ports however you won’t be able to achieve Thunderbolt data speeds. NOTE: Thunderbolt 2 ports use a different physical connector and hence are incompatible.

Troubleshooting

I have an external power adapter connected to the DV3 but the laptop charging function is not working?
To ensure that the laptop charging feature is working, the end user must have:

An external USB-C power adapter connecting via the PD port on the DV3
The Host laptop must be using the USB-C connector cable
The Host laptop must have a USB-C port that supports power delivery


NOTE: The dock may consume up to 8W from the external power adapter. Ensure that the any external power adapter used has sufficient power to pass onto the laptop.
Specifications

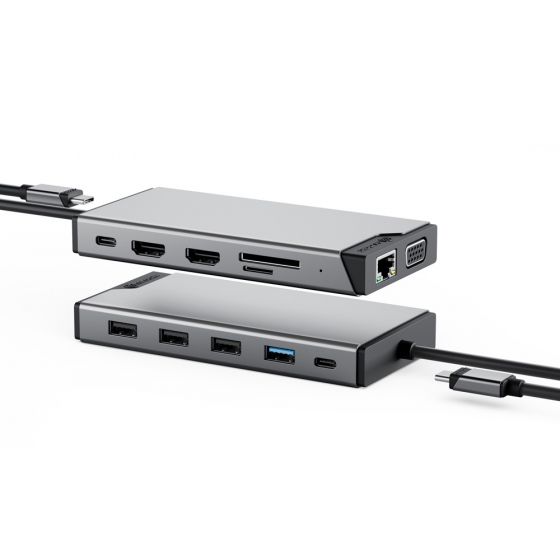

  • Part No.: DUCDDV3V2

Physical Characteristics-

  • Colour: Space Grey
  • Dimensions: 127 (L) x 60 (W) x 16.5 (H) mm
  • Warranty: 2 Years

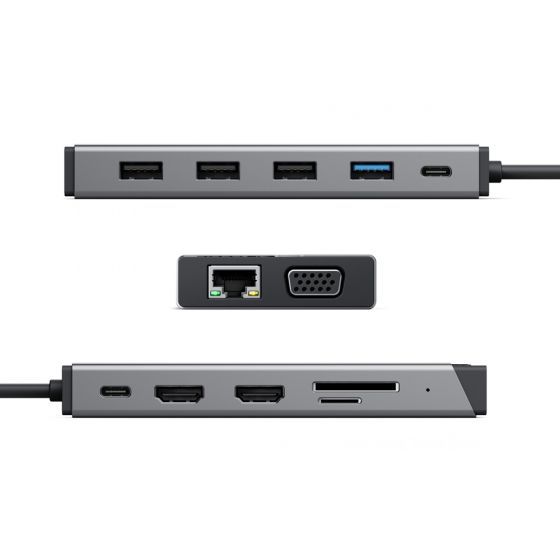

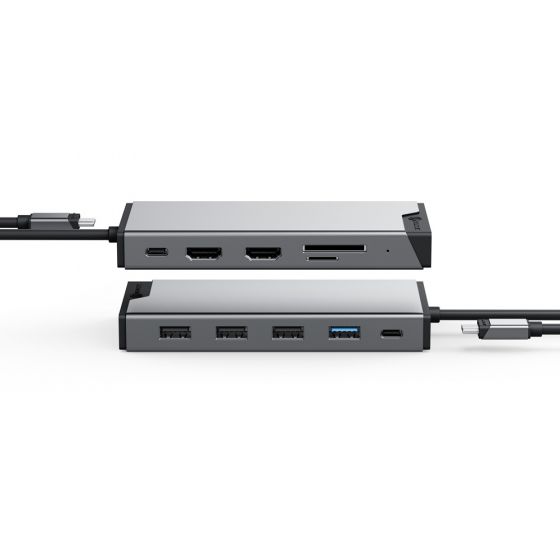

  • Output: 2x HDMI Video Outputs
    1x VGA Video Output
    1x USB-C 3.2 Gen 1 (5G)
    1x USB-A 3.2 Gen 1 (5G)
    3x USB-A 2.0
    1x RJ45 Gigabit Ethernet
    1x SD Memory Card Reader
    1x Micro SD Memory Card Reader
  • Input: 1x USB-C or USB-A Connection to Laptop
    1x USB-C PD Power Adapter Input
  • Power: This dock can be powered by the USB port on the host laptop or by connecting a USB-C power adapter. The dock accepts up to 100W (20V/5A) of power to run the dock and connected accessories as well as charging the connected laptop.
    Passthrough charging requires connection of a USB-C power adapter. Power adapter and charging cable not included – use the power adapter that came with your computer or purchase separately.
  • Resolution: HDMI 1 port output  Supported Resolution: 1920*1080@60 Hz.
    HDMI 2 port output  Supported 1920*1080@60 Hz.
    VGA port output Supported Resolution: 1920*1080@60 Hz.

    This monitor supports two independent video outputs. If three monitors are plugged into the dock, the VGA output will display the same video as one of the HDMI outputs.
  • Package Includes: 1x ALOGIC USB-C 12-in-1 Dual Display Mini Dock
    1x USB-C to USB-A Adapter
    1x User Manual
  • Device Compatibility: Plug and Play compatibility with macOS, Windows (11/10/8/7), ChromeOS, iOS, Samsung Dex and Linux
  • Barcode (EAN): 9350784100511
