General
How big is Clarity Max? How high and low can it go on its stand?

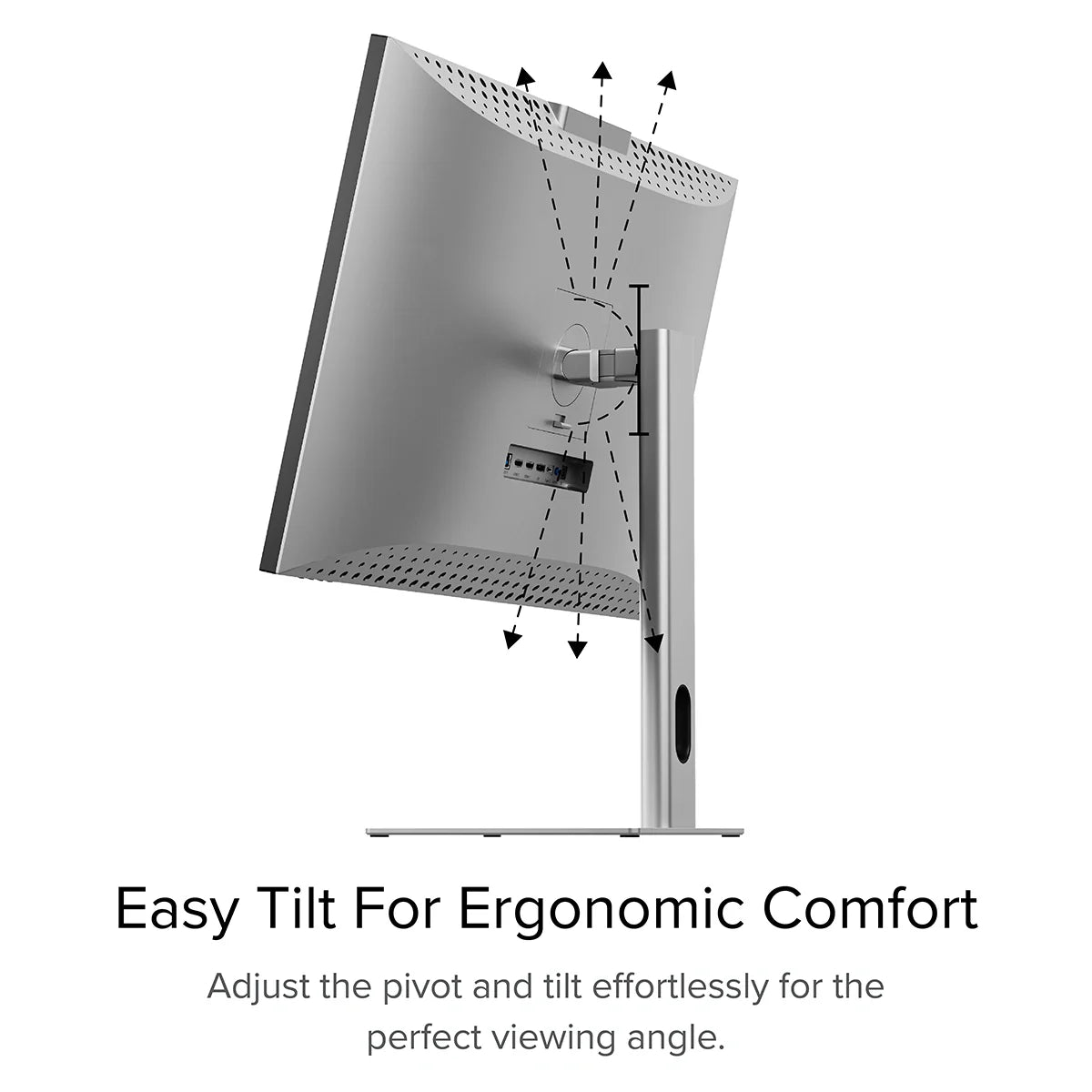

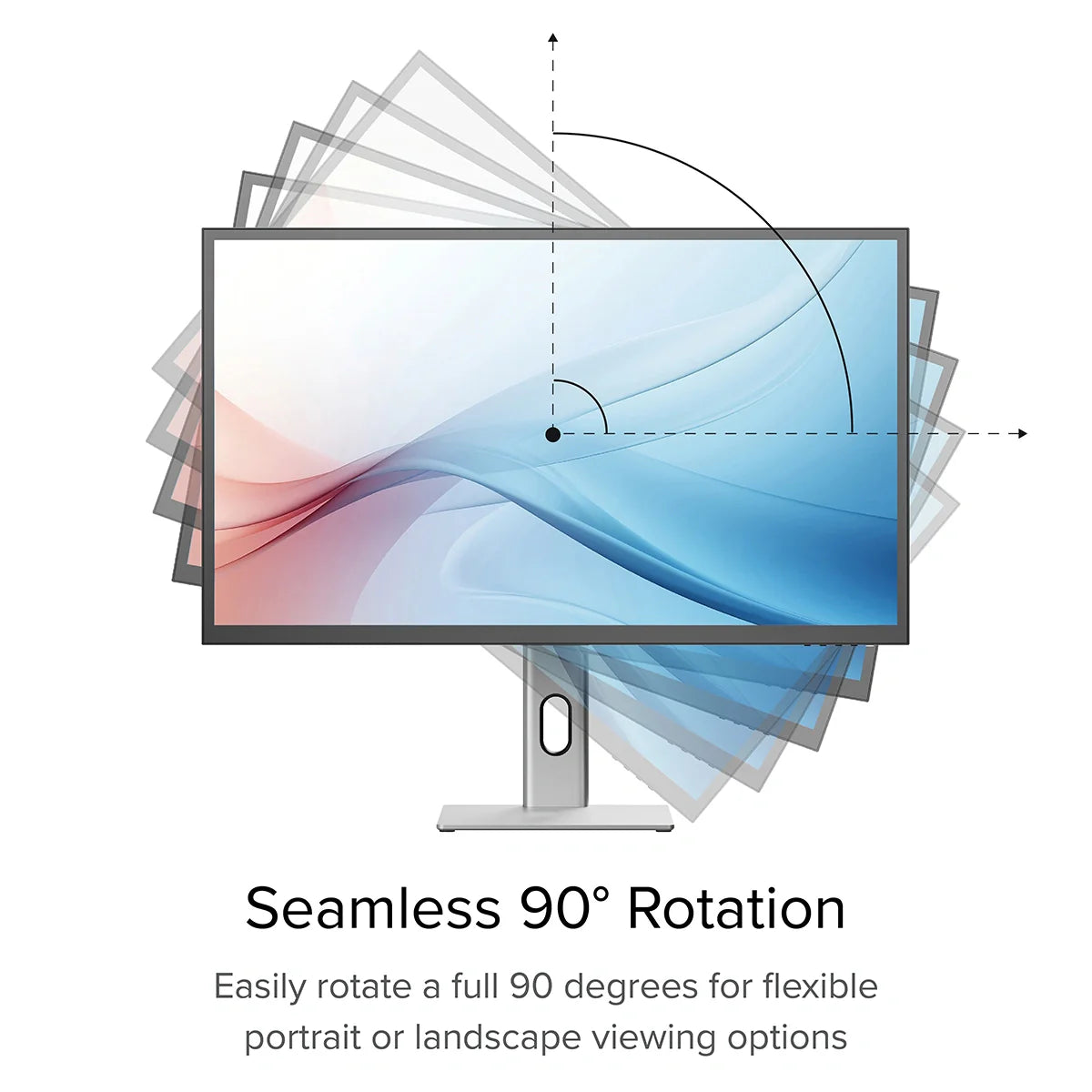

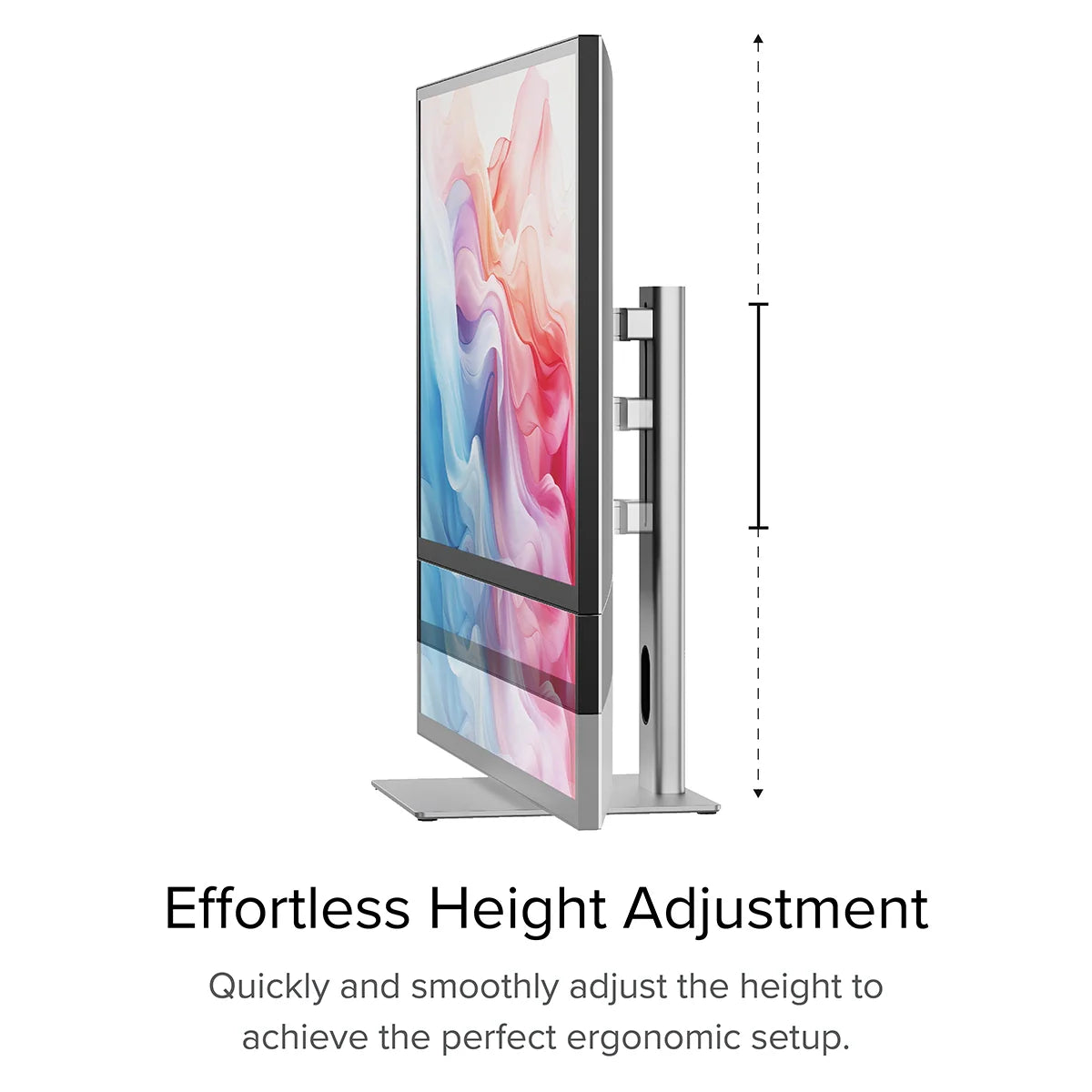

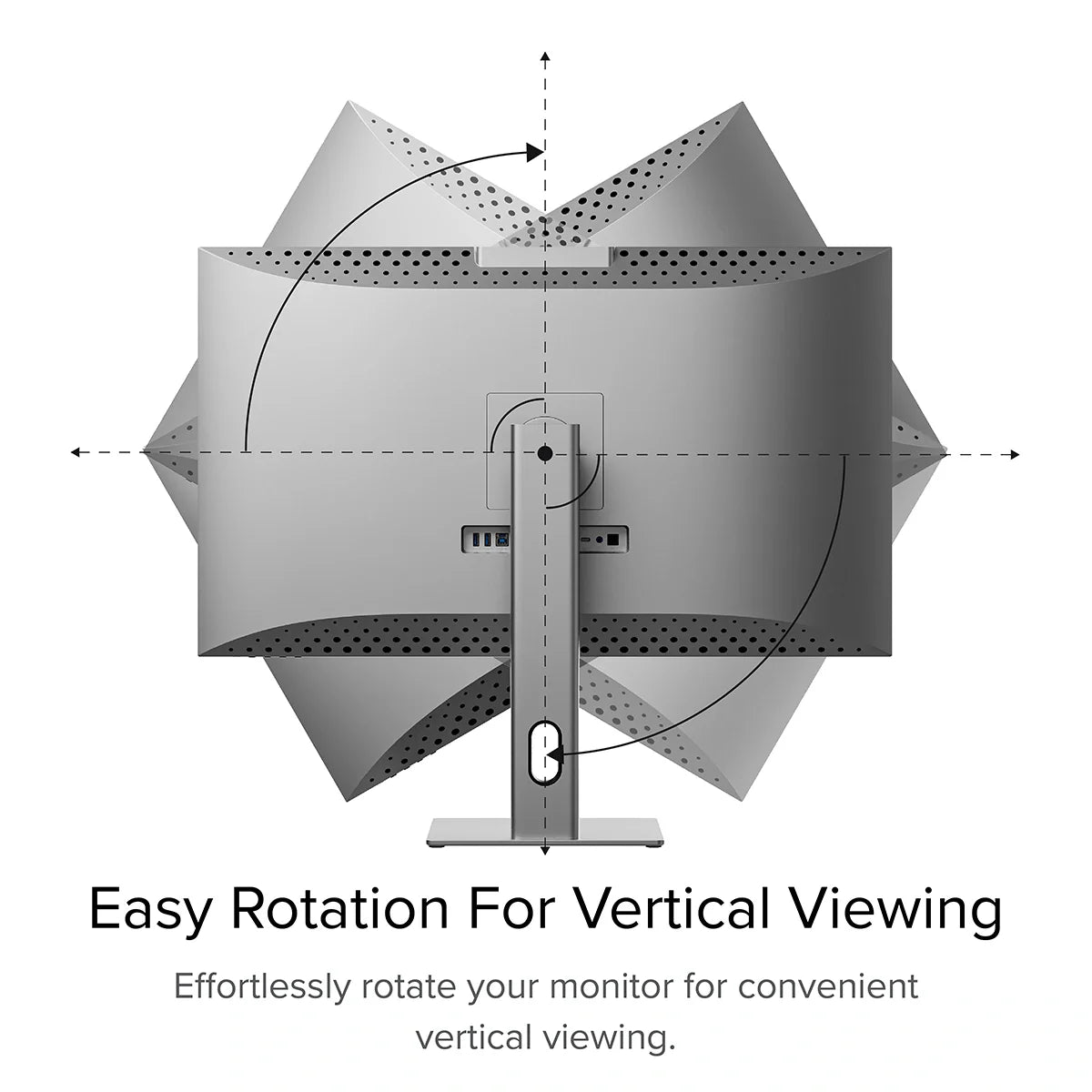

See the diagrams below for Clarity Max’s range of motion with the included stand.
EMBED IMAGES: https://alogic.app.box.com/s/pygintizqrhfeeohlvkbdsg379jd81y0
https://alogic.app.box.com/s/oh4tgdauvji09lrhh1ys62d7fksn6umt
What’s the difference between Clarity Max, Clarity Max Pro and Clarity Max Touch?
Clarity Max is just a monitor, while Clarity Max Pro features our smart webcam, while Clarity Max Touch features the webcam and a touchscreen.
Does Clarity Max support VESA Mounting?
Yes, Clarity Max supports 100x100mm VESA mounts and includes compatible mounting screws.
As a larger monitor, it’s important to check your monitor stand will support Clarity Max to avoid damaging your monitor.
Clarity Max is 32”, weighs 6.5kg without the stand and measures 725*250*606mm (LxDxH).
How do I use Clarity’s USB-A ports?
In order for your computer to access devices you've plugged into Clarity's two rear USB-A ports, you need to ensure your computer is:
Connected to Clarity via either:
Connected to Clarity via either:
- Clarity's USB-C port
- Clarity's USB-B port
Clarity’s "Active USB" mode is set to the same USB port you've connected to your computer.
To change Clarity's "Active USB" mode, navigate to "USB Switch" in the "Other Settings" menu of Clarity's main menu.
For example: if your computer is connected to Clarity via USB-C, you would select "Type-C" in the "USB Switch" menu.
How do I recharge my laptop with Clarity?
To charge your laptop via Clarity (up to 65W), simply connect it to the monitor via a USB-C cable which supports the required wattage.
However, it does need to plug into a USB-C port compatible with PD (Power Delivery) on your computer.
These can sometimes be identified by the presence of a battery icon next to the port on your laptop, but often you’ll need to check the user manual or manufacturer’s website to figure out which USB-C ports support PD.
All Thunderbolt 3 and 4 ports support PD.
Are Clarity Max monitors compatible with Windows, macOS and Chromebooks?
Yes, Clarity’s Webcam, Charging and Touch features have been tested with all three operating systems and work great.
In order to get multitouch working on macOS, you’ll need to install our macOS drivers.
Clarity’s Webcam hasn’t been tested with legacy versions of Windows and macOS.
Troubleshooting
When I wake my computer from sleep mode, Clarity doesn’t come back on.
In some cases, it’s possible for Clarity not to recognize the wake-up signal from a connected computer. This issue occurs most often when Clarity is connected to a computer through a dock.
To resolve the issue, restart Clarity by pressing the power button twice – it should recognize the connected device as part of its boot-up sequence.
If this issue persists, we recommend trying the following steps to isolate the issue:
To resolve the issue, restart Clarity by pressing the power button twice – it should recognize the connected device as part of its boot-up sequence.
If this issue persists, we recommend trying the following steps to isolate the issue:
- 1. Connect Clarity directly to your computer
- 2. Try connecting with a different cable or port.
- ie. Use DisplayPort instead of USB-C
- 3. Update your computer’s operating system.
Display
How accurate are Clarity Max’s Colours?
Clarity Max has quite accurate colours, 100% coverage in the key gamuts.
The stats listed below are the average colour accuracy for Clarity Max, although be aware that each panel’s colour
Although each monitor is varies slightly, below are the average colour accuracy stats for Clarity Max.
Clarity Max:
Gamut Coverage (NTSC): 91%
Gamut Coverage (DCI-P3): 96%
Gamut Coverage (SRGB): 99.9%
Gamut Coverage (Adobe RGB): 97%
Gamut Coverage (BT2020 CIE1976): 77%
Average ΔE: <1
Clarity Max Pro and Clarity Max Touch:
Gamut Coverage (NTSC): 95%
Gamut Coverage (DCI-P3): 102%
Gamut Coverage (SRGB): 98%
Gamut Coverage (Adobe RGB): 110%
Gamut Coverage (BT2020 CIE1976): 76%
Average ΔE: <1
How can I calibrate Clarity?
Clarity comes with several factory calibrated colour temperatures and video modes.
If you wish to further calibrate your monitor, you will need to use a third-part calibration tool, such as a Calibrite/Sypder.
Does Clarity Max support HDR?
Yes, Clarity, Clarity Pro and Clarity Max Touch all support HDR 400.
Does Clarity support automatic source switching?
No. While Clarity will automatically switch to the only active source, it can’t switch between two active video inputs based on which has current activity with an external switcher, like a KVM.
Does Clarity have a Picture in Picture function?
Yes, Clarity supports a variety of picture-in-picture modes for displaying multiple video sources at the same time.
